A Cost-Effective Approval Workflow Without Breaking the Bank

In the world of continuous deployment, every second (and every penny) counts. Today, I'm going to show you a clever GitHub Actions hack that can save your team time and money while maintaining rock-solid deployment controls.

The Problem with Traditional Approval Workflows

Manual workflow approvals in GitHub Actions are great in theory, but they come with a hidden cost. While the workflow waits for human approval, you're burning through your Actions minutes - essentially paying for waiting time. Not very efficient, right?

Introducing the Issue-Based Approval System

What if we could create an approval workflow that:

  • Costs nothing while waiting

  • Provides clear tracking

  • Offers granular access control

  • Works seamlessly with your existing GitHub workflow

Let me introduce you to our ingenious solution: an Issue-Based Deployment Approval System.

✨ How It Works: The Science Behind the Magic

Workflow Trigger

  1. When code is pushed to the dev branch or a pull request is merged

  2. An automatically created GitHub issue prompts for deployment approval

Approval Mechanism

  • Only specific team members or team roles can approve

  • Approval is as simple as commenting "approve" or "LGTM" on the issue

  • Built-in security checks verify the approver's identity

Deployment

  • Once approved, the deployment runs immediately

  • The approval issue is automatically closed

  • A comment tracks who approved and what was deployed

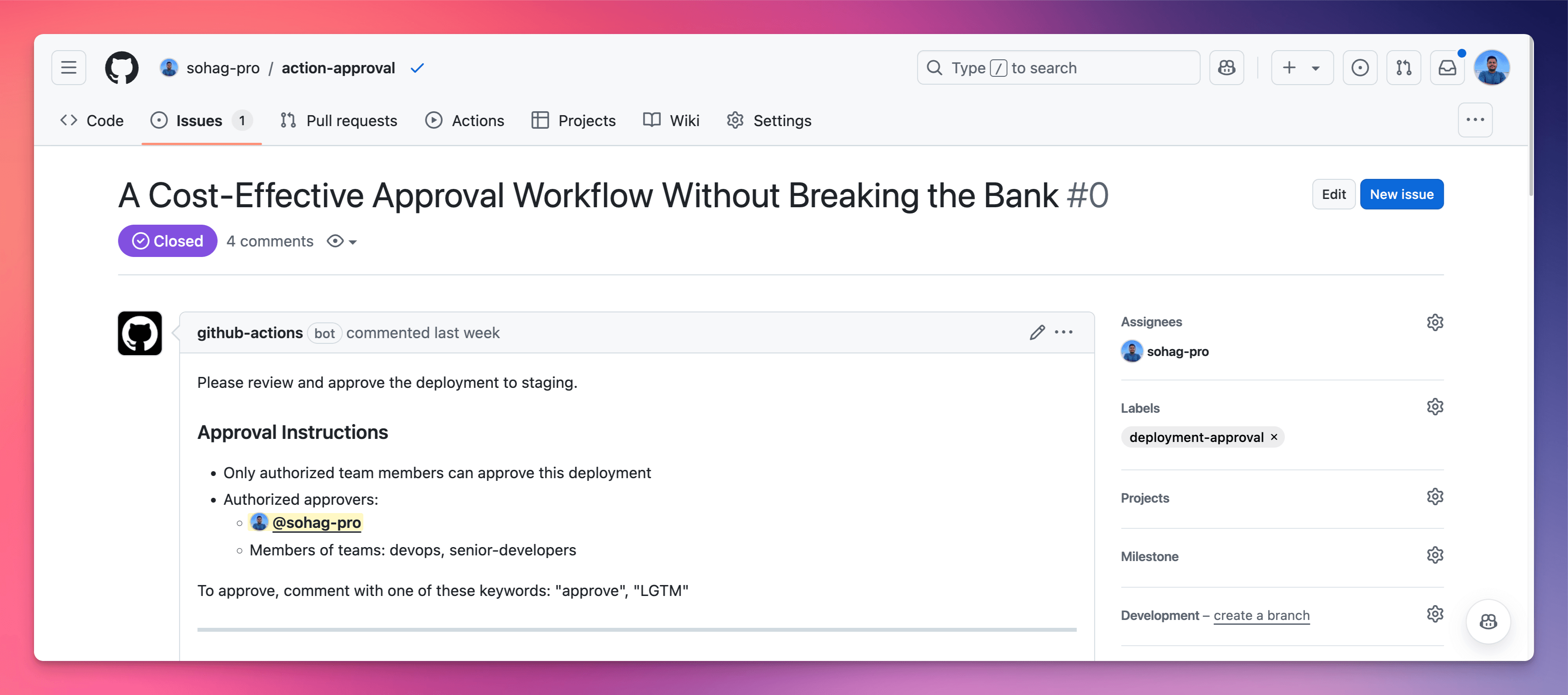

A real world example

Action Approval Issue

Wanna see if it’s true, check it here: https://github.com/sohag-pro/action-approval/issues/8

Action Implemented Repo: https://github.com/sohag-pro/action-approval

Please give a ⭐ if you find it helpful.

I'll share the two key workflow files that make this magic happen:

1. Issue Creation Workflow

.github/workflows/create-approval-issue.yml file

name: Create Approval Issue

on:
  push:
    branches:
      - dev
  pull_request:
    types: [closed]
    branches:
      - dev
permissions:
  issues: write
  contents: read

jobs:
  create-approval-issue:
    runs-on: ubuntu-latest
    if: github.event.pull_request.merged == true || github.event_name == 'push'
    steps:
      - name: Create Approval Issue
        uses: actions/github-script@v7
        with:
          script: |
            let commitSha = '';
            if (context.eventName === 'pull_request') {
              commitSha = context.payload.pull_request.merge_commit_sha;
            } else {
              commitSha = context.sha;
            }

            const shortSha = commitSha.substring(0, 7);

            const issueBody = `
            Please review and approve the deployment to staging.

            ### Approval Instructions
            - Only authorized team members can approve this deployment
            - Authorized approvers:
              - @sohag-pro
              - Members of teams: devops, senior-developers

            To approve, comment with one of these keywords: "approve", "LGTM"

            ---
            Metadata (do not modify):
            \`\`\`json
            {
              "commit_sha": "${commitSha}",
              "branch": "dev",
              "triggered_by": "${context.eventName}"
            }
            \`\`\`
            `;

            const issue = await github.rest.issues.create({
              owner: context.repo.owner,
              repo: context.repo.repo,
              title: `Deploy to Staging needs approval - ${shortSha}`,
              body: issueBody,
              labels: ['deployment-approval']
            });
            console.log(`Created issue #${issue.data.number}`);

πŸš€ Create Issue Workflow Explanation

Trigger:

  1. push: When a new commit is pushed to the dev branch.

  2. pull_request: When a pull request targeting the dev branch is merged.


Permissions:

  • issues: write: To create an issue.

  • contents: read: To read repository information.


Job: create-approval-issue

  • Runs-on: ubuntu-latest.

Condition:

  • The job runs if:

    • A pull request was merged (github.event.pull_request.merged == true).

    • Or the event is a push.


Steps:

  1. Create Approval Issue:

    • Uses the actions/github-script action.

    • Extracts the commit SHA:

      • If the trigger is pull_request, it uses the merge_commit_sha of the pull request.

      • Otherwise, it uses the SHA of the latest pushed commit (context.sha).

    • Creates a short SHA (first 7 characters) for readability.

    • Constructs an issue body that includes:

      • Instructions for the approval process.

      • Metadata (commit SHA, branch, trigger source) in JSON format.

    • Creates a new issue with:

      • Title: Deploy to Staging needs approval - <short SHA>.

      • Body: Approval instructions and metadata.

      • Label: deployment-approval.


Purpose:

This workflow automates the creation of a tracking issue for deployment approval:

  • Ensures all deployments to staging are documented and require explicit approval.

  • Simplifies the process for authorized users to approve a deployment by commenting on the issue.


Key Highlights:

  • Uses metadata for traceability (e.g., commit SHA, branch, and event source).

  • Directly ties deployments to commits or merge events for better tracking.

  • Encourages controlled deployments via a formal approval workflow.

2. Deployment Approval Workflow

.github/workflows/deploy-staging.yml

name: Deploy to Staging

on:
  issue_comment:
    types: [created]
    if: |
      contains(github.event.issue.title, 'Deploy to Staging needs approval')

permissions:
  issues: write
  contents: read
  pull-requests: read

jobs:
  process-approval:
    runs-on: ubuntu-latest

    if: |
      contains(github.event.issue.title, 'Deploy to Staging needs approval') &&
      (contains(github.event.comment.body, 'approve') || contains(github.event.comment.body, 'LGTM'))
    steps:
      - name: Check Approver
        id: check-approver
        uses: actions/github-script@v7
        with:
          script: |
            // Define allowed approvers
            const ALLOWED_APPROVERS = [
              'sohag-pro',
              'tech-lead',
              'devops-engineer'
            ];

            // Define allowed teams (team slugs)
            const ALLOWED_TEAMS = [
              'devops',
              'senior-developers'
            ];

            const commenter = context.payload.comment.user.login;
            console.log(`Comment by: ${commenter}`);

            // First check if user is directly in allowed list
            if (ALLOWED_APPROVERS.includes(commenter)) {
              console.log('Approver is in allowed users list');
              core.setOutput('status', 'authorized');
              return;
            }

            // Check if user is member of allowed teams
            let isTeamMember = false;
            for (const team of ALLOWED_TEAMS) {
              try {
                const { data: isMember } = await github.rest.teams.getMembershipForUserInOrg({
                  org: context.repo.owner,
                  team_slug: team,
                  username: commenter
                });

                if (isMember.state === 'active') {
                  console.log(`Approver is member of team: ${team}`);
                  isTeamMember = true;
                  break;
                }
              } catch (error) {
                console.log(`Error checking membership in team ${team}:`, error.message);
                continue;
              }
            }

            if (isTeamMember) {
              core.setOutput('status', 'authorized');
            } else {
              console.log('User not authorized to approve deployments');
              core.setOutput('status', 'unauthorized');
            }

      - name: Handle Unauthorized User
        if: steps.check-approver.outputs.status == 'unauthorized'
        uses: actions/github-script@v7
        with:
          script: |
            const approver = context.payload.comment.user.login;
            await github.rest.issues.createComment({
              owner: context.repo.owner,
              repo: context.repo.repo,
              issue_number: context.payload.issue.number,
              body: `❌ @${approver} is not authorized to approve deployments. Please wait for approval from an authorized team member.`
            });
            core.setFailed('Approval must come from an authorized user or team member');

      - name: Extract commit SHA
        id: extract-sha
        if: steps.check-approver.outputs.status == 'authorized'
        uses: actions/github-script@v7
        with:
          script: |
            const issueBody = context.payload.issue.body;
            const match = issueBody.match(/"commit_sha":\s*"([a-f0-9]+)"/);
            if (!match) {
              core.setFailed('Could not find commit SHA in issue body');
              return;
            }
            const commitSha = match[1];
            core.setOutput('commit_sha', commitSha);
            console.log(`Extracted commit SHA: ${commitSha}`);

      - uses: actions/checkout@v2
        if: steps.check-approver.outputs.status == 'authorized'
        with:
          ref: ${{ steps.extract-sha.outputs.commit_sha }}

      - name: Verify correct commit
        if: steps.check-approver.outputs.status == 'authorized'
        run: |
          current_sha=$(git rev-parse HEAD)
          expected_sha=${{ steps.extract-sha.outputs.commit_sha }}
          if [ "$current_sha" != "$expected_sha" ]; then
            echo "Error: Checked out SHA ($current_sha) does not match expected SHA ($expected_sha)"
            exit 1
          fi
          echo "Verified correct commit SHA: $current_sha"

      - name: Deploy to Staging
        if: steps.check-approver.outputs.status == 'authorized'
        run: |
          echo "Deploying commit ${{ steps.extract-sha.outputs.commit_sha }} to staging..."
          # Add your deployment commands here

      - name: Close Approval Issue
        if: steps.check-approver.outputs.status == 'authorized'
        uses: actions/github-script@v7
        with:
          script: |
            const issue_number = context.payload.issue.number;
            const deployedSha = '${{ steps.extract-sha.outputs.commit_sha }}';
            const approver = context.payload.comment.user.login;

            // Close the issue
            await github.rest.issues.update({
              owner: context.repo.owner,
              repo: context.repo.repo,
              issue_number: issue_number,
              state: 'closed'
            });

            // Add completion comment
            await github.rest.issues.createComment({
              owner: context.repo.owner,
              repo: context.repo.repo,
              issue_number: issue_number,
              body: `βœ… Deployment to staging completed successfully!\n\nDeployed commit: ${deployedSha}\nBranch: dev\nApproved by: @${approver}`
            });

This GitHub Actions workflow automates the deployment of a commit to a staging environment based on approval comments in a GitHub issue. Here's a breakdown of its components:


πŸ€– Deploy workflow explanation

Trigger:

  • Event: issue_comment is created.

  • Condition: The issue title must contain the phrase "Deploy to Staging needs approval". The action runs only if this condition is met.


Permissions:

The workflow uses:

  • issues: write (to interact with issues and comments),

  • contents: read (to fetch repository data),

  • pull-requests: read.


Jobs:

1. process-approval:

  • Runs-on: ubuntu-latest.

  • Condition: The issue must meet the following:

    • Title contains "Deploy to Staging needs approval".

    • The comment body includes the keywords approve or LGTM.


Steps:

  1. Check Approver:

    • Uses the actions/github-script action.

    • Checks if the commenter:

      • Is in the list of allowed users (sohag-pro, tech-lead, devops-engineer), or

      • Belongs to one of the allowed teams (devops, senior-developers).

    • If authorized:

      • Sets the status to authorized.
    • If unauthorized:

      • Adds a comment rejecting the user's approval and fails the job.
  2. Handle Unauthorized User:

    • Posts a rejection comment if the user isn't authorized.
  3. Extract Commit SHA:

    • Extracts the commit_sha from the issue body using regex.

    • Fails if no valid SHA is found.

  4. Checkout the Repository:

    • Checks out the repository using the extracted commit_sha.
  5. Verify Correct Commit:

    • Ensures the checked-out commit matches the extracted SHA.
  6. Deploy to Staging:

    • Executes deployment commands for the staging environment (placeholder for real deployment logic).
  7. Close Approval Issue:

    • Closes the issue and adds a success comment with details:

      • Deployed commit SHA,

      • Branch name,

      • Approver's GitHub handle.


Purpose:

  • Ensures controlled deployment to staging by verifying the approver's identity and explicitly approving the commit.

  • Tracks the deployment process through issue comments and statuses.

Key Highlights:

  • Implements a strict approval mechanism.

  • Utilizes team-based and individual-based authorization.

  • Automatically documents deployment activities in the related issue.

πŸ’‘ Key Benefits

  • Cost-Effective: Only pay for actual deployment time

  • Secure: Strict access controls

  • Transparent: Clear audit trail of who approved what

  • Flexible: Easy to customize for your team's needs

Real-World Implementation Tips

  1. Customize the ALLOWED_APPROVERS and ALLOWED_TEAMS

  2. Add more detailed logging for compliance

  3. Consider adding more approval keywords

  4. Implement additional security checks as needed

Conclusion

This workflow demonstrates how a little creativity can solve real DevOps challenges. By thinking outside the traditional CI/CD box, we've created a solution that's not just clever, but genuinely useful.

Ready to Level Up Your Deployment Game? πŸš€

Fork the workflows, adapt them to your needs, and watch your deployment process transform!

Would you like me to refine any part of the blog post or add more technical details?

Β
